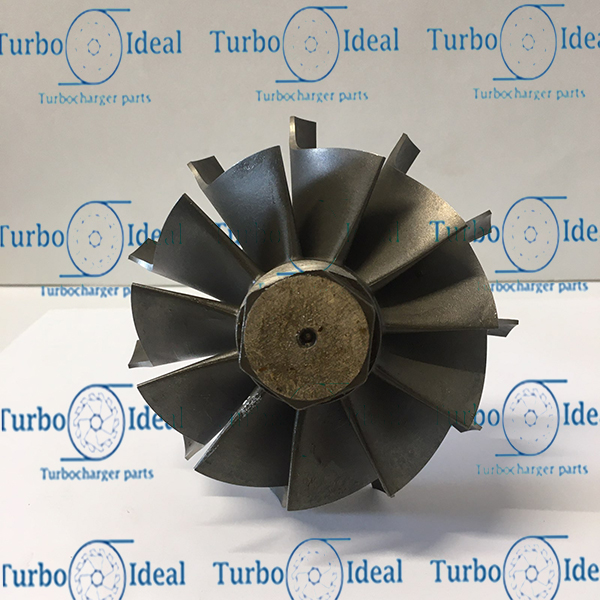

101-07-0094 Ostalo
Specifikacija
| TURBO IDEAL P/N: | 101-07-0094 |
| PRODUCER: | Turbo Ideal |
| MODEL: | TL81, TV81, TW81 |
| FOR TURBOCHARGER: | Honeywell-Garrett |
| OEM NO. | 408492-0012, 408492-0016, 408492-0022, 408492-0023 |
|---|---|
| A EXDUCER DIAMETAR [mm] | 87.7 |
| B INDUCER DIAMETAR [mm] | 111.8 |
| BLADES NO. | 11 |
| C TIP HEIGHT [mm] | 13.67 |
| CW Bore | 9.49/9.53 |
| Journal Bearing | 15.885 |
| Shaft Length | 181mm |
